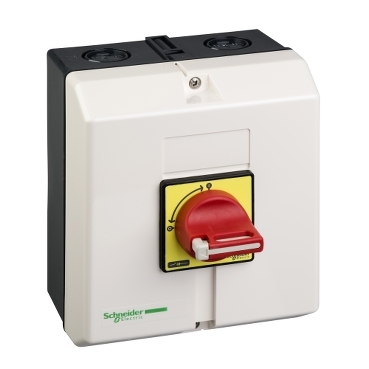

Item details
Rated operation power at AC-3, 400 V
22
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
63
Number of poles
3
Rated operating voltage
690
Conditioned rated short-circuit current Iq
10
Degree of protection (IP), front side
IP65
Number of auxiliary contacts as change-over contact
0
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Yes
Type of control element
Turn button
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-/service switch
No
Rated operation power at AC-23, 400 V
30
Rated short-time withstand current lcw
0.96
Colour control element
Red
Suitable for ground mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting center
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
63
Switching power at 400 V
37
Version as reversing switch
No
Instructions
11 in stock
