Item details
Downloads
Item details
Width
125
Height
18.4
Depth
65.1
Input current at signal 1
2.5
Suitable for safety functions
No
Number of digital inputs
2
Number of digital outputs
0
Time delay at signal exchange
0.925
Voltage type of supply voltage
AC/DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Type of voltage (input voltage)
AC/DC
Supporting protocol for TCP/IP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
Yes
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Short-circuit protection, outputs available
No
Type of digital output
None
Type of electric connection
Screw connection
Rail mounting possible
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
Yes
System accessory
Yes
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Degree of protection (IP)
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Front build in possible
No
Rack-assembly possible
No
Wall mounting/direct mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level acc. to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
115
Supply voltage AC 60 Hz
115
Permitted voltage at input
-3
Type of output voltage
AC/DC
Digital inputs configurable
No
Digital outputs configurable
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
SIL according to IEC 61508
None

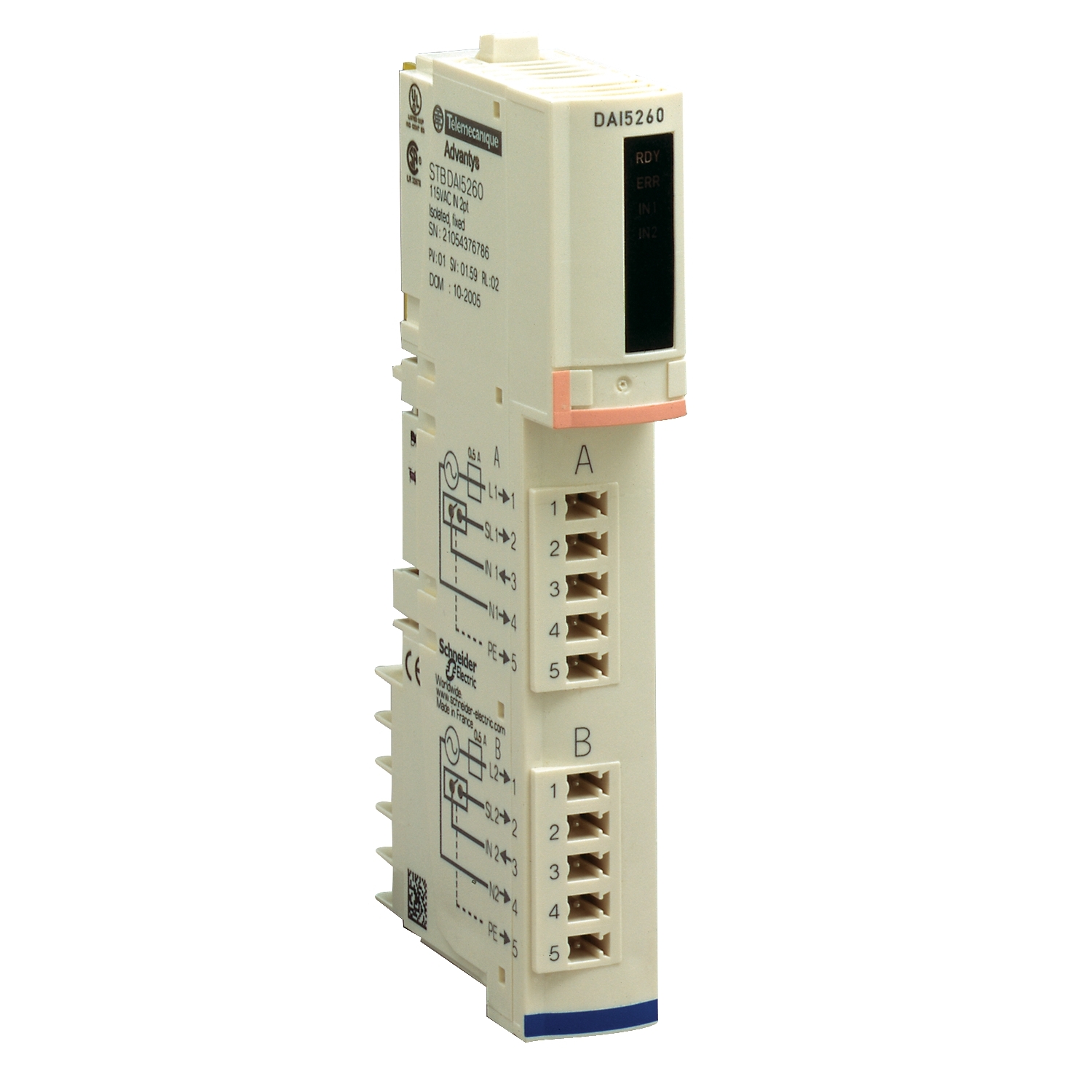

STBDAI5260K | Schneider Electric

standard digital input kit STB - 115 V AC - 2 I
£ 110.06 -25%
£ 82.55
£ 99.05 inc. VAT
- +
Add to cart

Call for availability

500 available on 08/01/2027
