Item details
Downloads
Item details
Width
17.5
Height
90
Depth
72
Remote operation possible
No
Suitable only for remote control
No
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
Yes
Clock function, starting with pulse, variable
Yes
With semiconductor output
No
Function delay-on energization
Yes
Function floating contact on energization
Yes
Function star-delta
Yes
Time range
0.1
Function delay on de-energization
Yes
Function floating contact on de-energization
Yes
Function pulse shaping
Yes
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 50HZ
12
Rated control supply voltage Us at AC 60HZ
12
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
1
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Pluggable on auxiliary contact block
No
Outputs, reversible delayed/undelayed
No
Voltage type for actuating
AC/DC

RE17RMMW | Schneider Electric

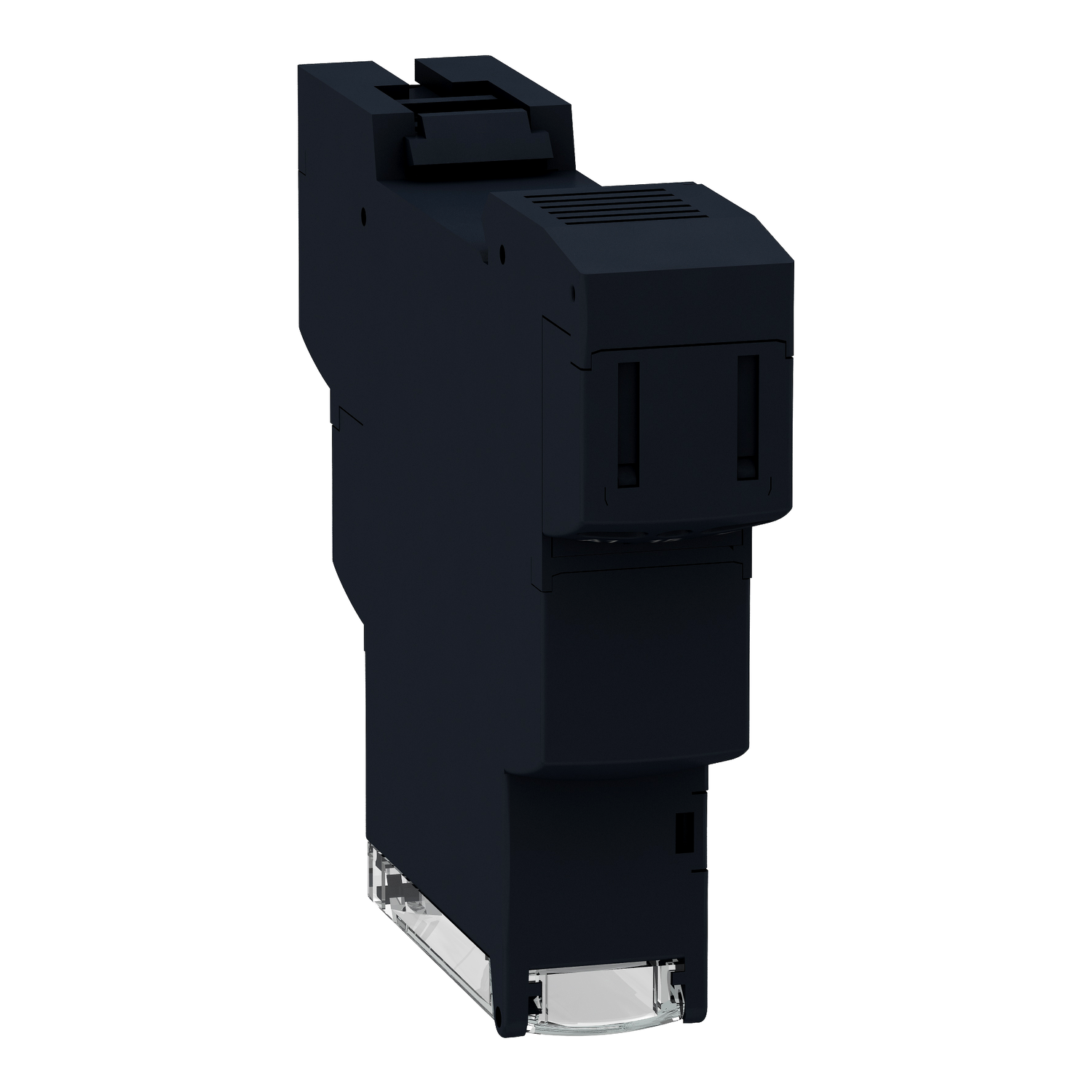

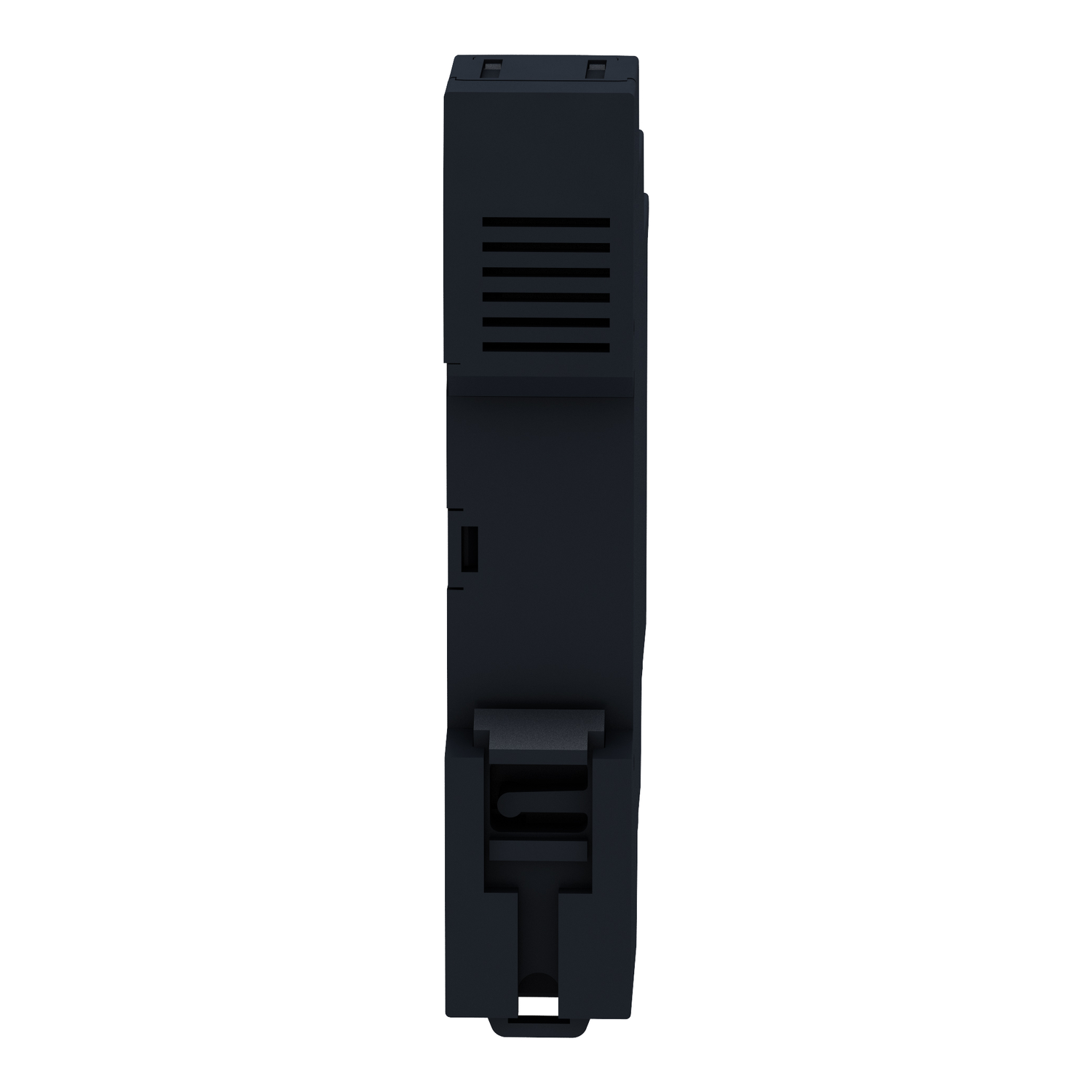

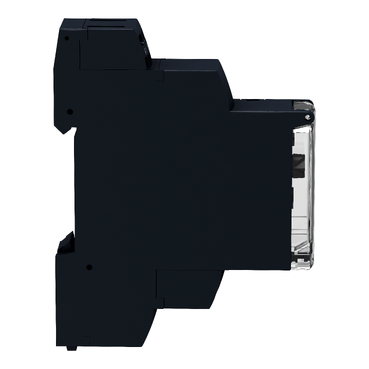

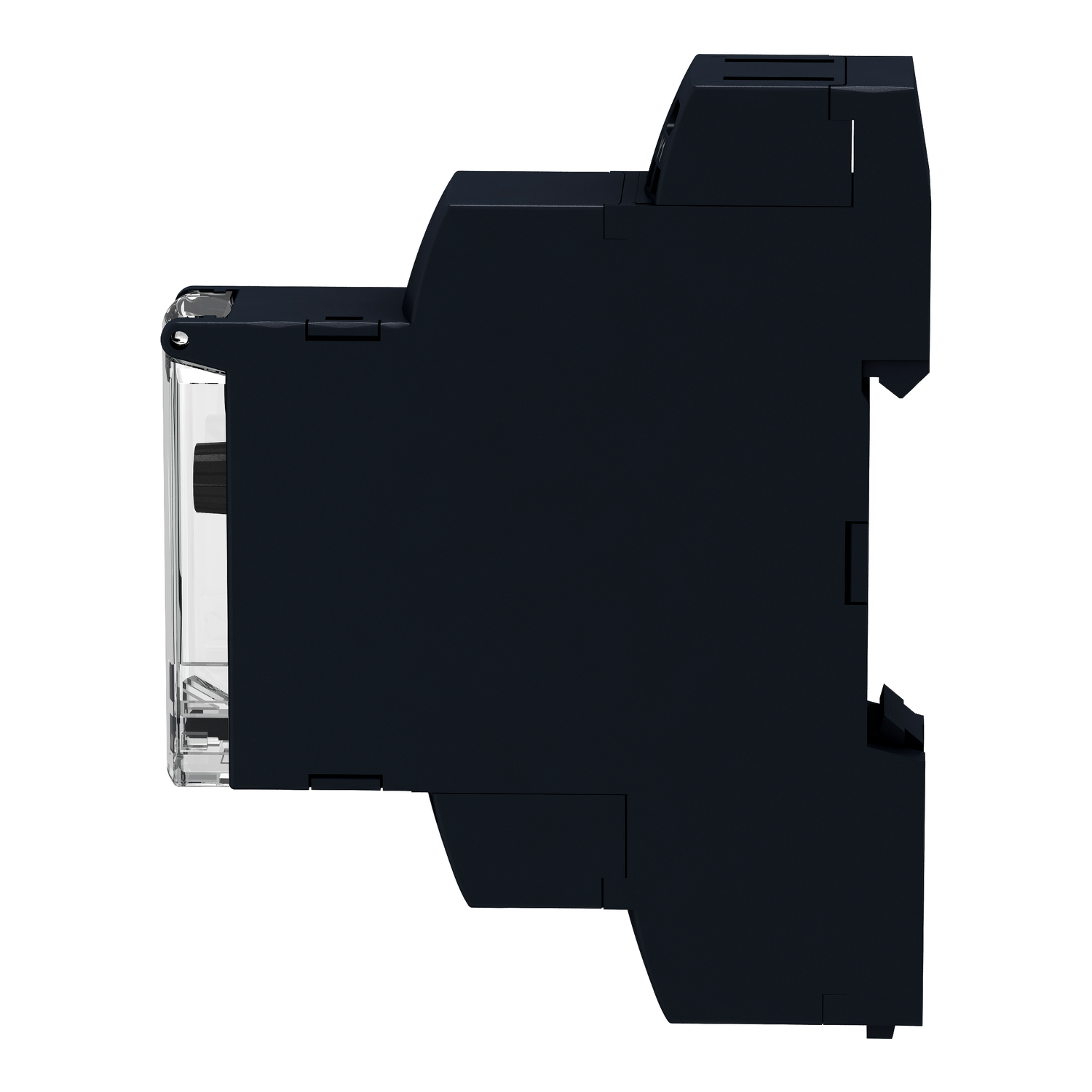

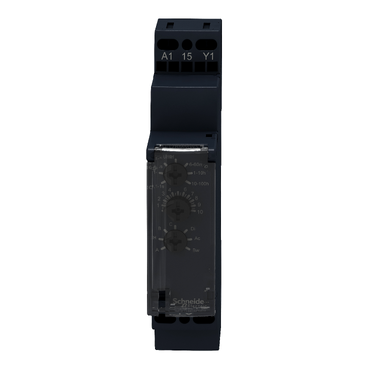

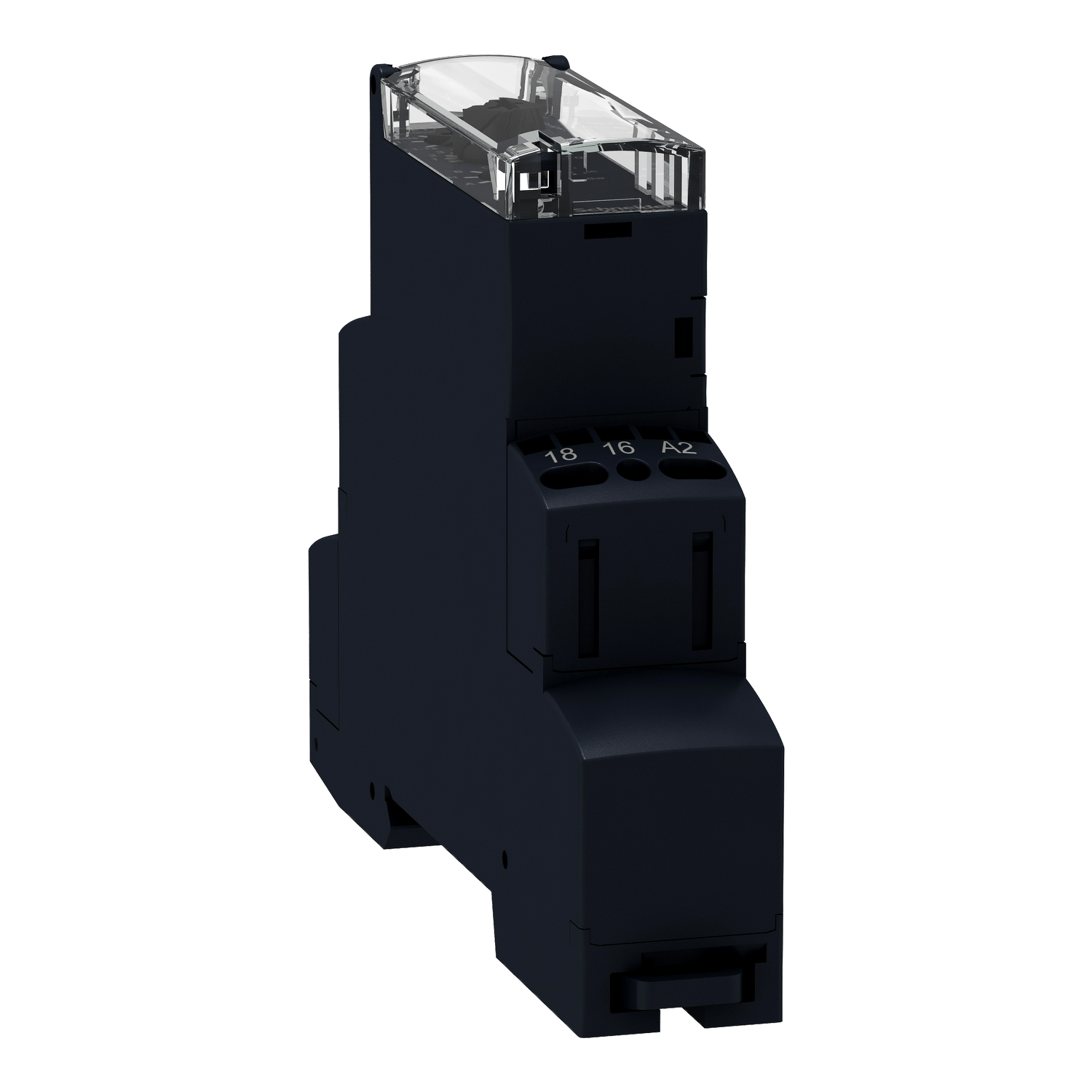

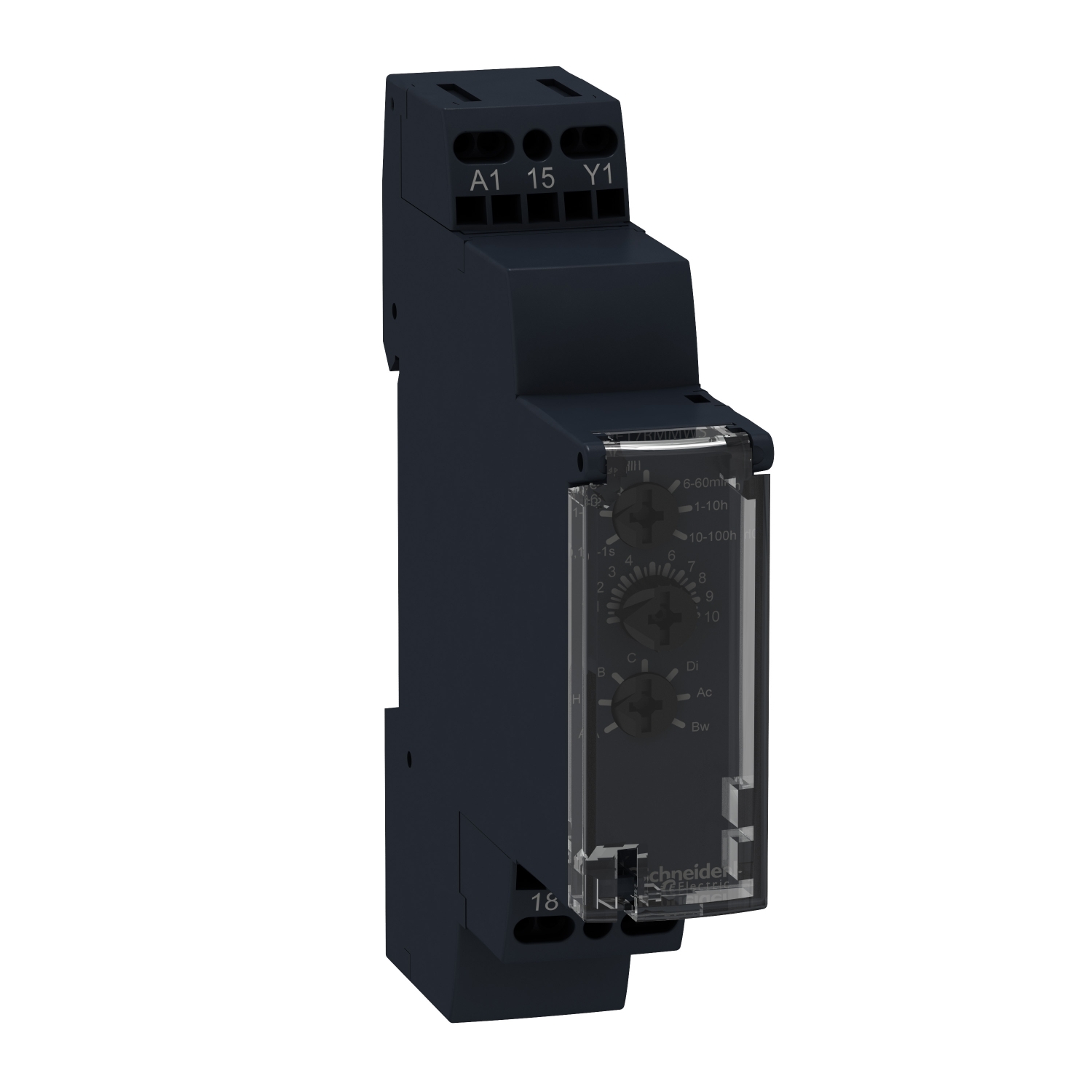

Modular timing relay, 8 A, 1 CO, 1 s..100 h, time delay, 12...240 V AC/DC
£ 65.69 -40%
£ 39.41
£ 47.30 inc. VAT
- +
