Item details
Built-in depth
76.22
Suitable for safety functions
No
Screen diagonal
5.7
Operation temperature
-20
Voltage type of supply voltage
AC/DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
With colour display
Yes
Number of colours of the display
65536
Number of pixels, horizontal
320
Number of pixels, vertical
240
Number of function buttons, programmable
0
With numeric keyboard
No
With alpha numeric keyboard
No
Useful project memory/user memory
16000
With message indication
Yes
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
No
Number of password levels
0
Printer output available
No
Number of online languages
4
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65/IP67
With SW interfaces
Yes
Width of the front
163
Height of the front
129.4
Rail mounting possible
Yes
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Wall mounting/direct mounting
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage DC
24
Type of display
LCD
Number of grey-scales/blue-scales of display
0
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Number of buttons with LED
0
Number of system buttons
0

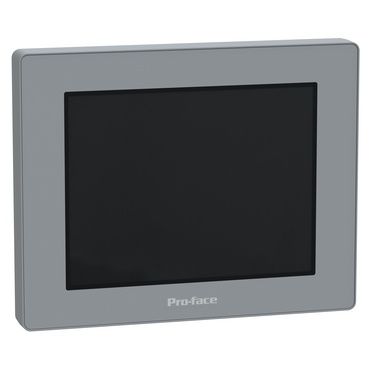

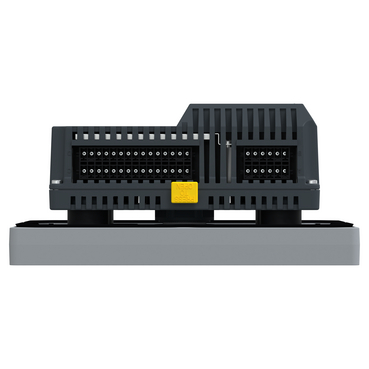

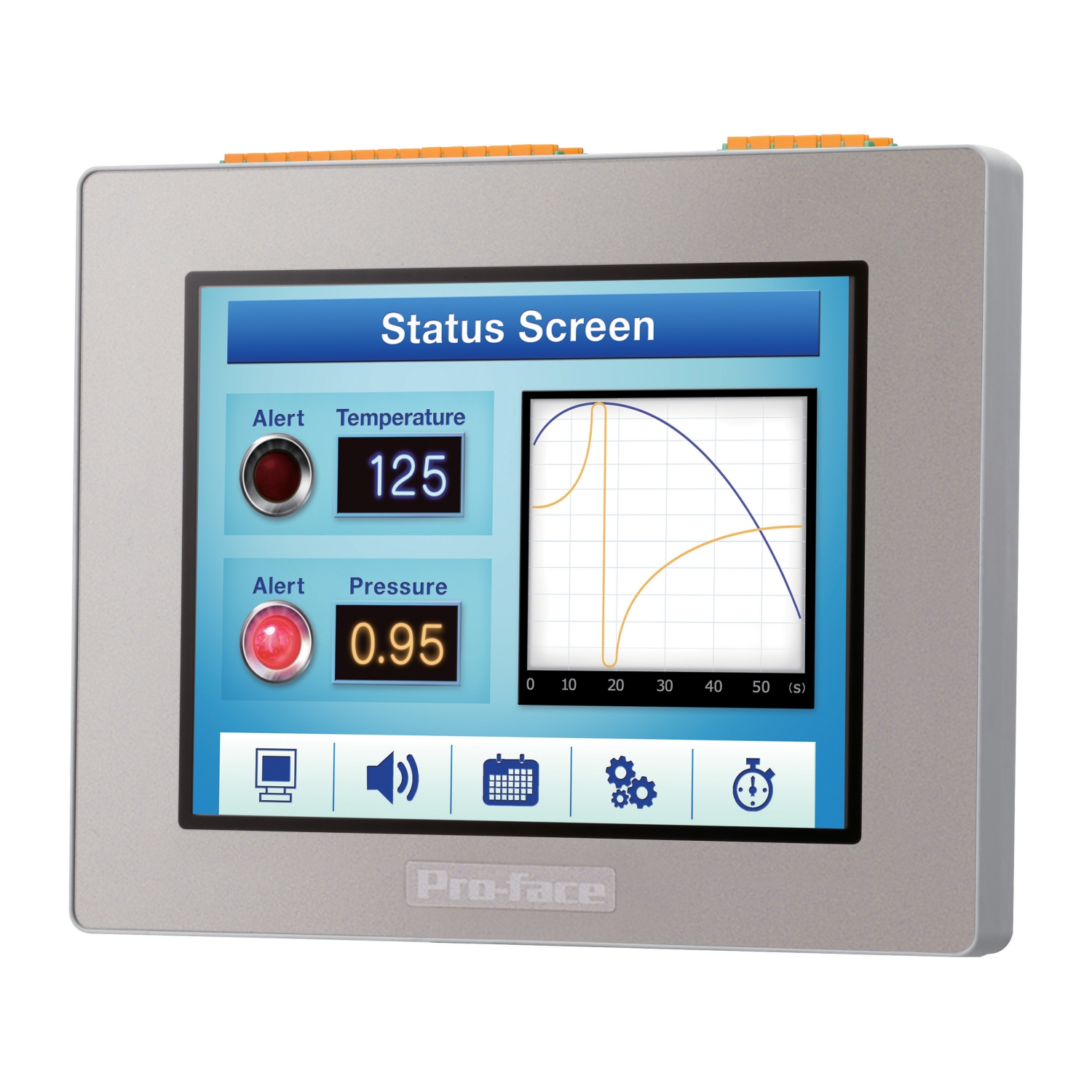

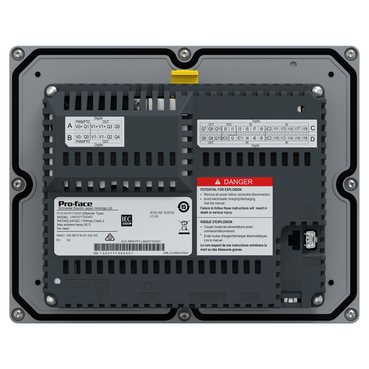

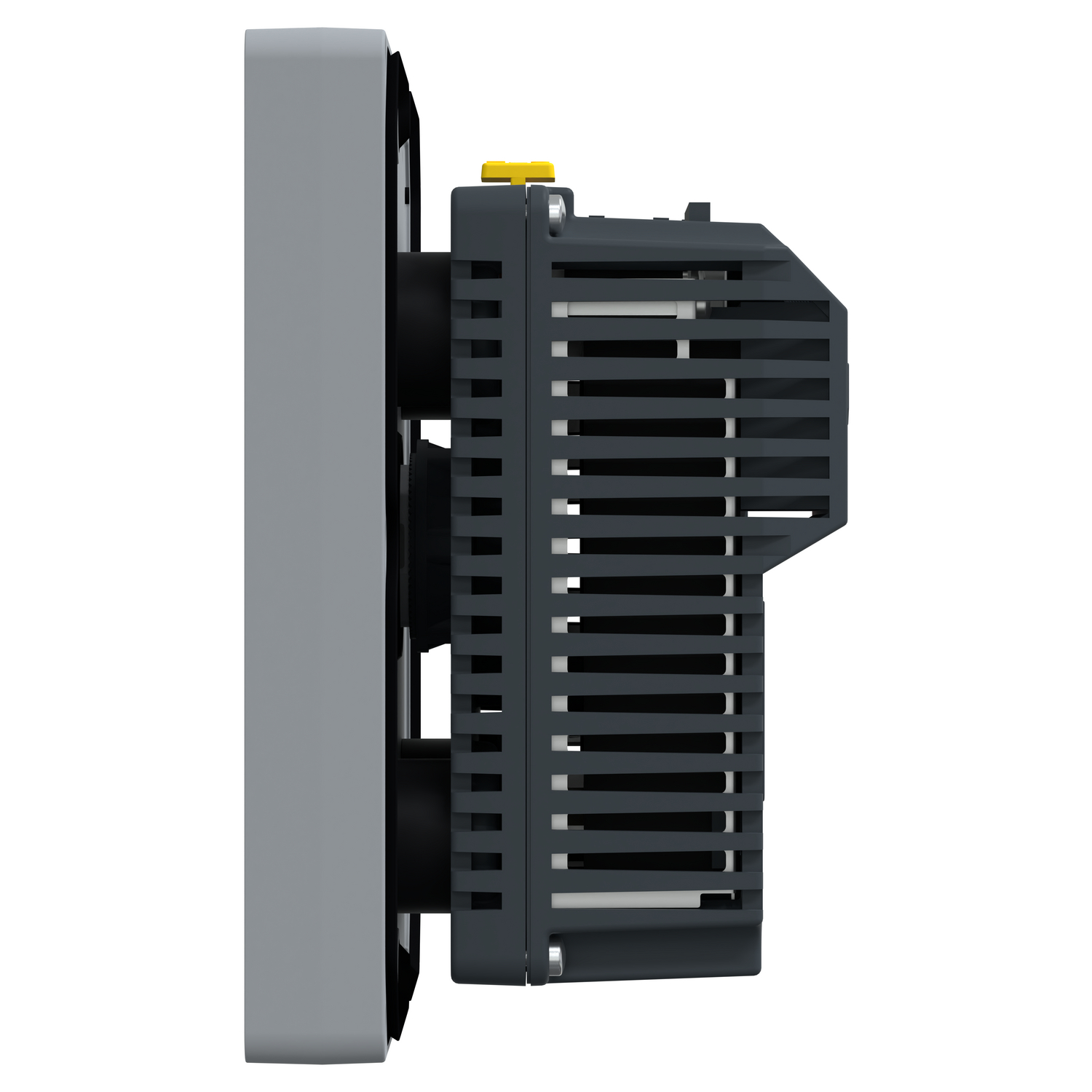

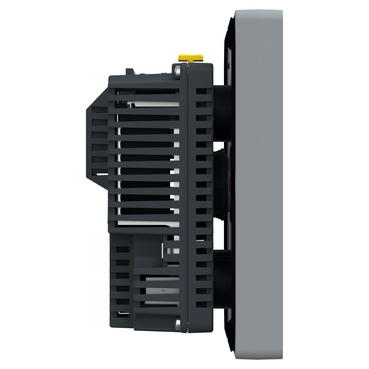

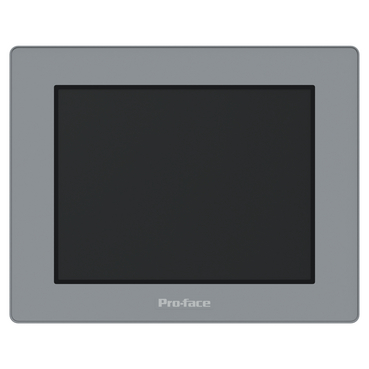

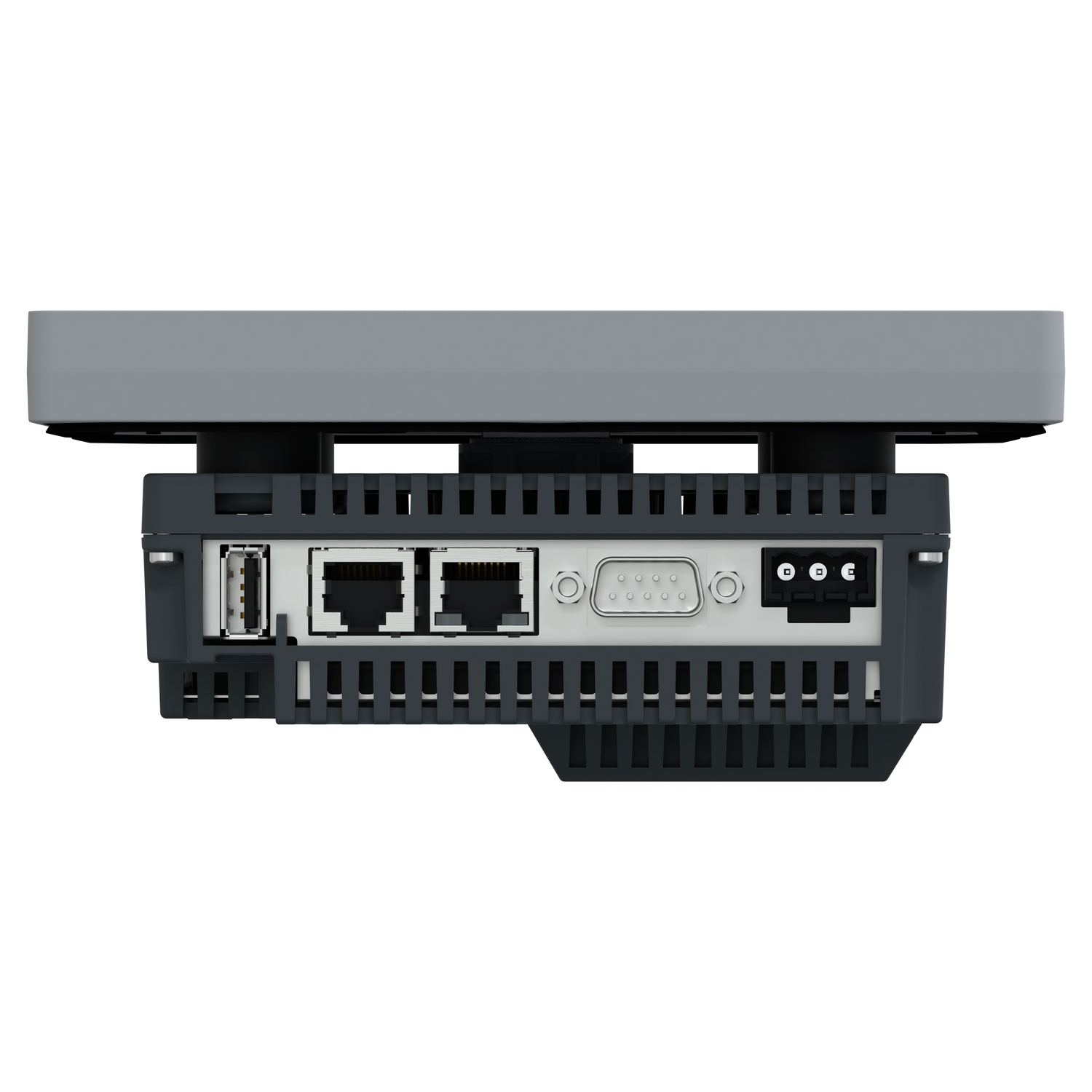

PFXLM4301TADAC | ProFace

Graphic LCD Unit
£ 1,166.88
£ 1,400.26 inc. VAT
- +
Add to cart

Call for availability

500 available on 24/10/2026
