Item details
Rated operation power at AC-3, 400 V
3
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie
9
Overload release current setting
1.5
Supporting protocol for LON
No
Supporting protocol for TCP/IP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Rail mounting possible
Yes
Rated control supply voltage Us at DC
24
Degree of protection (IP)
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Release class
CLASS 10
With short-circuit release
No
Type of electrical connection of main circuit
Spring clamp connection
Type of electrical connection for auxiliary- and control cur
Spring clamp connection
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Voltage type for actuating
DC
Kind of motor starter
Reversing starter
Rated operation power at AC-3, 230 V, 3-phase
1.5
Rated power, 460 V, 60 Hz, 3-phase
3
Rated operation current at AC-3, 400 V
6.5
Ambient temperature, , upper operating limit
70
Temperature compensated overload protection
Yes

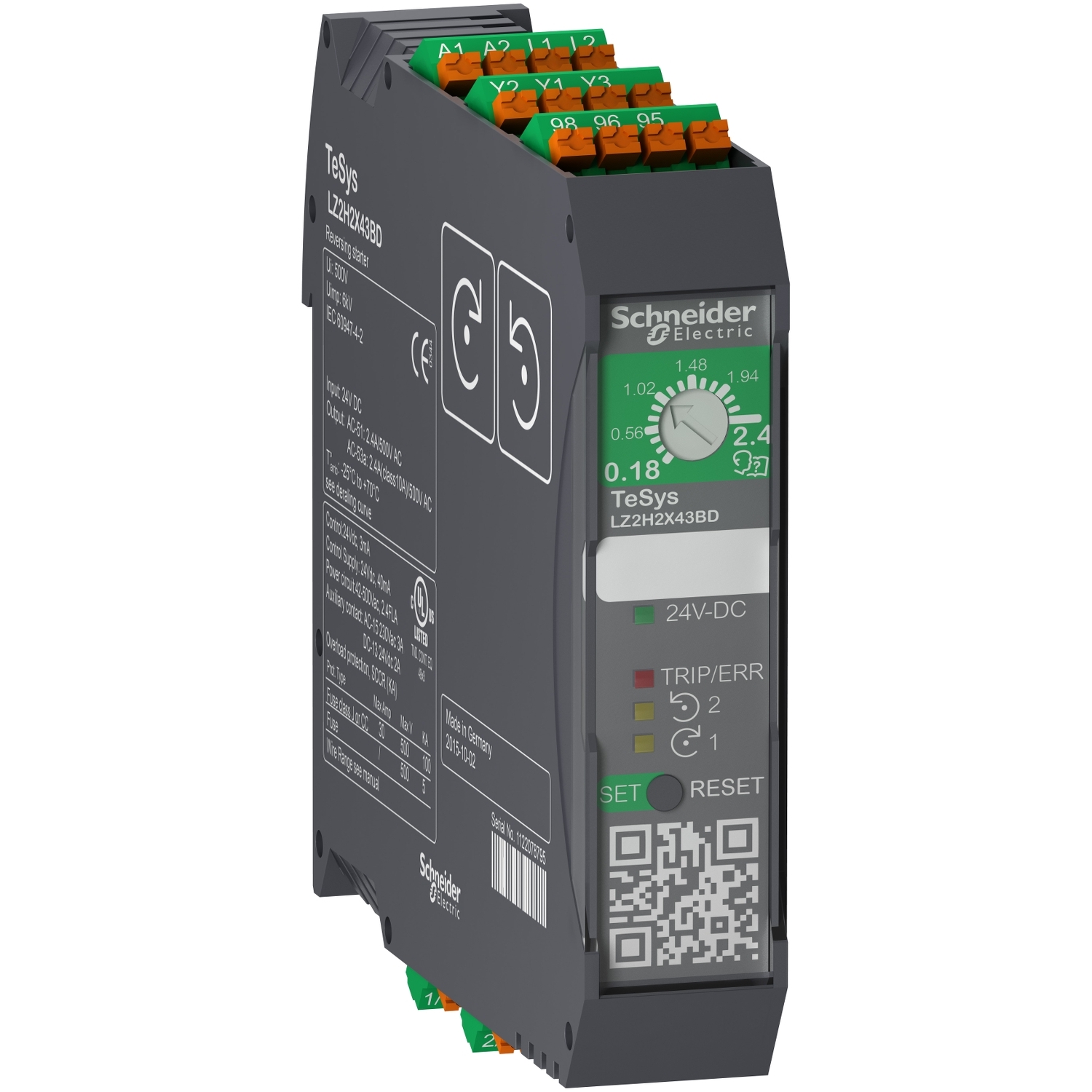

LZ2H6X53BD | Schneider Electric

Reversing Starter TeSys H 3kW-400V control 24VDC Spring
£ 173.48 -30%
£ 121.44
£ 145.72 inc. VAT
- +
Add to cart

Call for availability

500 available on 30/10/2026
