Item details

Built-in depth

50

Suitable for safety functions

No

Screen diagonal

12

Operation temperature

0

Voltage type of supply voltage

DC

Supporting protocol for LON

No

Number of HW-interfaces industrial Ethernet

0

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

2

Number of HW-interfaces parallel

0

Number of HW-interfaces other

0

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for KNX

No

Supporting protocol for MODBUS

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

With colour display

Yes

Number of colours of the display

16000000

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Number of function buttons, programmable

0

With numeric keyboard

No

With alpha numeric keyboard

No

Useful project memory/user memory

1000

With message system (incl. buffer and confirmation)

No

Degree of protection (IP), front side

IP67

With SW interfaces

Yes

Width of the front

313

Height of the front

235

Rail mounting possible

No

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Number of HW-interfaces PROFINET

0

Number of HW-interfaces Wireless

0

Wall mounting/direct mounting

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

IO link master

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supply voltage DC

24

Type of display

TFT

Radio standard GPRS

No

Radio standard GSM

No

Radio standard UMTS

No

Number of buttons with LED

0

Number of system buttons

0

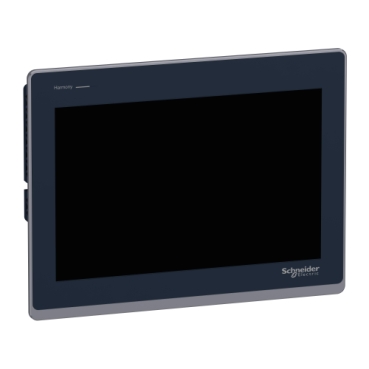

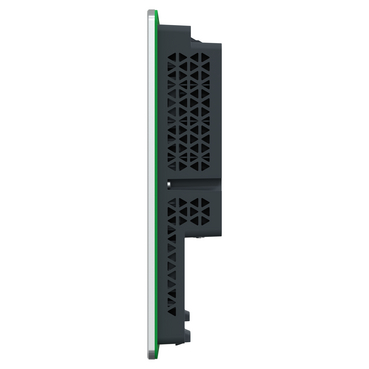

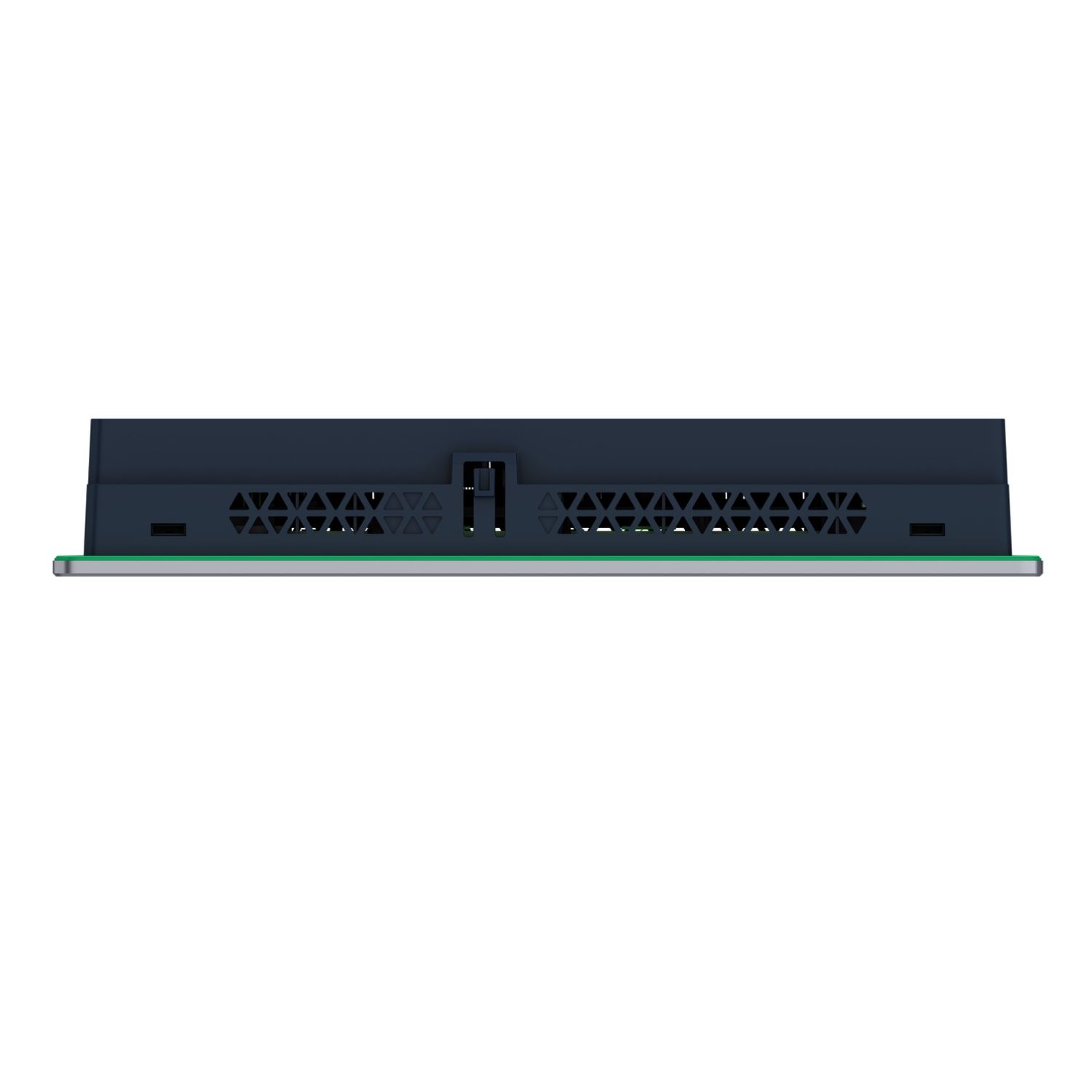

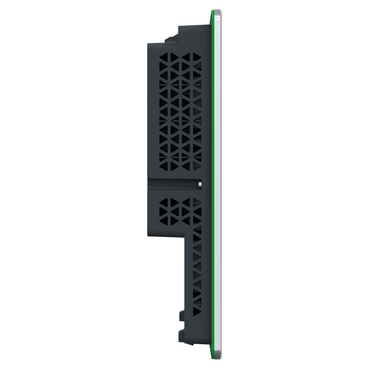

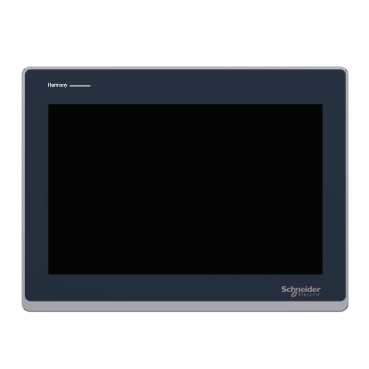

HMIST6600 | Schneider Electric

Touch panel screen, Harmony ST6, 12"W display, 2COM, 2Ethernet, USB host&device, 24 VDC

£ 2,267.58 -20%

£ 1,814.06

£ 2,176.88 inc. VAT

Call for availability

2 available on 23/10/2026
