Item details

Built-in depth

86

Suitable for safety functions

Yes

With hard disc

Yes

Screen diagonal

15.6

Operation temperature

0

Voltage type of supply voltage

AC/DC

Supporting protocol for LON

No

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-422

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces serial TTY

0

Number of HW-interfaces USB

2

Number of HW-interfaces parallel

0

Number of HW-interfaces other

1

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for KNX

No

Supporting protocol for MODBUS

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

Yes

Number of pixels, horizontal

1366

Number of pixels, vertical

768

With touch screen

Yes

Degree of protection (IP), front side

IP66

Max. main memory

4000

With floppy disc drive

No

With other storage media

No

Customer individual configuration

Yes

Number of free AGP-slots

0

Number of free PCI-slots

1

Number of free ISA-slots

0

Number of free PCMCIA-slots

0

Number of HW-interfaces SCSI

0

Number of HW-interfaces PS2

0

Integrated keyboard

No

Number of function buttons

0

Mouse-cursor control integrated

No

Width of the front

419.7

Height of the front

269

Rail mounting possible

No

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Number of HW-interfaces PROFINET

0

Number of HW-interfaces Wireless

0

Front build in possible

Yes

Mounting type, gallows mounting

No

Rack-assembly possible

No

Mounting type, table foot

No

Wall mounting/direct mounting

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

IO link master

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supply voltage AC 50 Hz

110

Supply voltage AC 60 Hz

110

Supply voltage DC

24

Preinstalled operating system

Windows 8

Type of display

TFT

Radio standard GPRS

No

Radio standard GSM

No

Radio standard UMTS

No

Number of buttons with LED

0

Number of system buttons

0

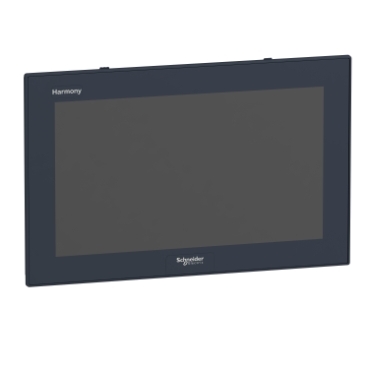

HMIPSOS752D1801 | Schneider Electric

S-Panel PC Optimized SSD W15 DC Windows 10

£ 3,813.82

£ 4,576.58 inc. VAT

Call for availability
