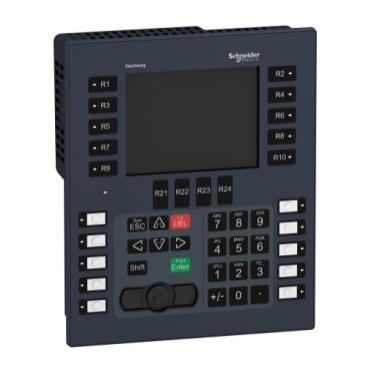

Item details
Built-in depth
70
Suitable for safety functions
Yes
Screen diagonal
5.7
Operation temperature
0
Voltage type of supply voltage
AC/DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
With colour display
Yes
Number of colours of the display
65536
Number of pixels, horizontal
1024
Number of pixels, vertical
1024
Number of function buttons, programmable
14
With numeric keyboard
No
With alpha numeric keyboard
Yes
Useful project memory/user memory
128000
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Printer output available
Yes
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65/IP67
With SW interfaces
Yes
Width of the front
220
Height of the front
265
Rail mounting possible
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Wall mounting/direct mounting
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage DC
24
Type of display
TFT
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Number of buttons with LED
24
Number of system buttons
8
