Item details
Downloads
Item details
Built-in depth
67
Suitable for safety functions
No
Screen diagonal
12
Operation temperature
0
Voltage type of supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
With colour display
Yes
Number of colours of the display
16000000
Number of pixels, horizontal
1024
Number of pixels, vertical
768
Number of function buttons, programmable
0
With numeric keyboard
No
With alpha numeric keyboard
No
Useful project memory/user memory
0
With message indication
No
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
No
Process default value (input) possible
No
With recipes
No
Number of password levels
0
Printer output available
No
Number of online languages
0
Additional software components, loadable
No
Degree of protection (IP), front side
IP66
With SW interfaces
No
Width of the front
315
Height of the front
241
Rail mounting possible
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Wall mounting/direct mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage DC
12
Type of display
LCD
Number of grey-scales/blue-scales of display
0
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Number of buttons with LED
0
Number of system buttons
0

HMIDT642FC | Schneider Electric

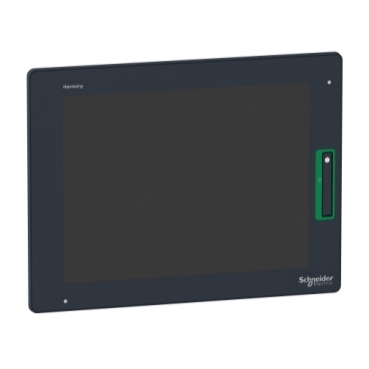

Flat screen, Harmony GTU, 12.1 Touch Smart Display XGA, coated display
£ 3,265.86 -20%
£ 2,612.69
£ 3,135.23 inc. VAT
- +
Add to cart

Call for availability

500 available on 26/02/2027
