Item details
Downloads
Item details
Built-in depth
36
Suitable for safety functions
No
Screen diagonal
7
Operation temperature
0
Voltage type of supply voltage
DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
With colour display
Yes
Number of colours of the display
262144
Number of pixels, horizontal
800
Number of pixels, vertical
480
Number of function buttons, programmable
0
With numeric keyboard
No
With alpha numeric keyboard
No
With message system (incl. buffer and confirmation)
No
Degree of protection (IP), front side
IP67
With SW interfaces
No
Width of the front
203.6
Height of the front
148.6
Rail mounting possible
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Wall mounting/direct mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage DC
24
Type of display
TFT
Number of grey-scales/blue-scales of display
262144
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
Number of buttons with LED
0
Number of system buttons
0

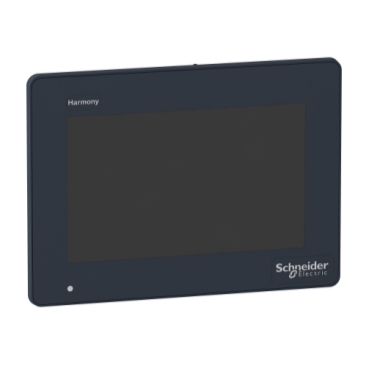

HMIDT351 | Schneider Electric

7W Touch Advanced Display WVGA
£ 661.91 -20%
£ 529.53
£ 635.43 inc. VAT
- +
Add to cart

Call for availability

5 available on 23/10/2026
