Item details
Downloads
Item details
Width
64.6
Model
Modular
Height
134.6
Depth
130.3
With display
Yes
Suitable for safety functions
Yes
Number of digital inputs
4096
Number of digital outputs
4096
Number of analogue inputs
1024
Number of analogue outputs
1024
Voltage type of supply voltage
AC/DC
Type of memory
NVRAM
Memory size
18000
Processing time (1K, binary operation)
0.01
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
3
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces other
64
With optical interface
No
Additional program memory possible
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for ASI
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Redundancy
No
Rail mounting possible
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
ATEX dust-ex-protection, Cat. 3D
System accessory
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
0
Front build in possible
No
Rack-assembly possible
Yes
Wall mounting/direct mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Number of relay outputs
0
Max. number of time switches
0
Performance level acc. to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage DC
24
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
SIL according to IEC 61508
None

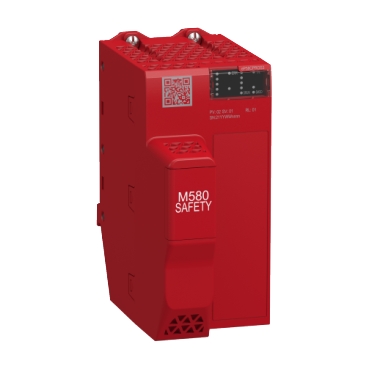

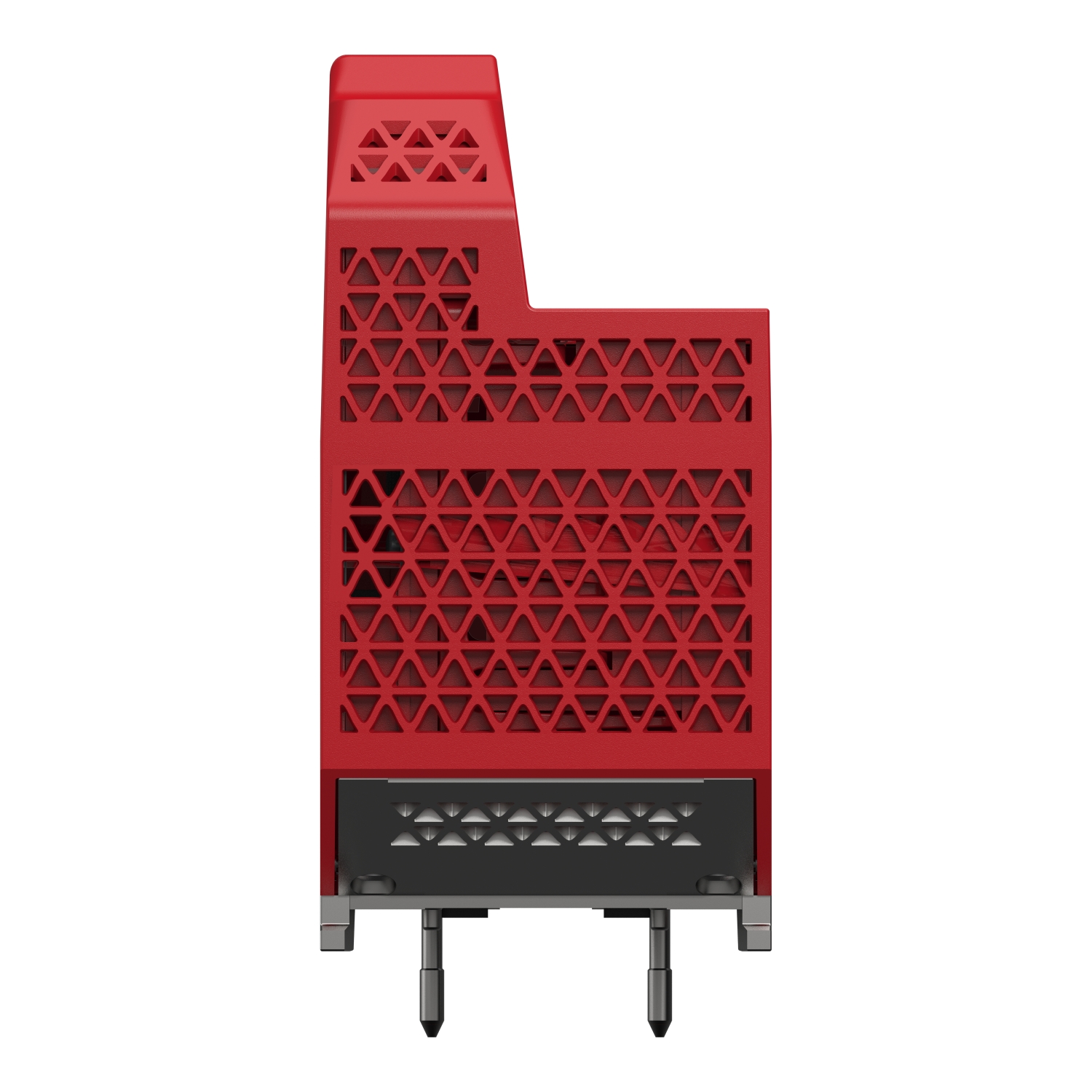

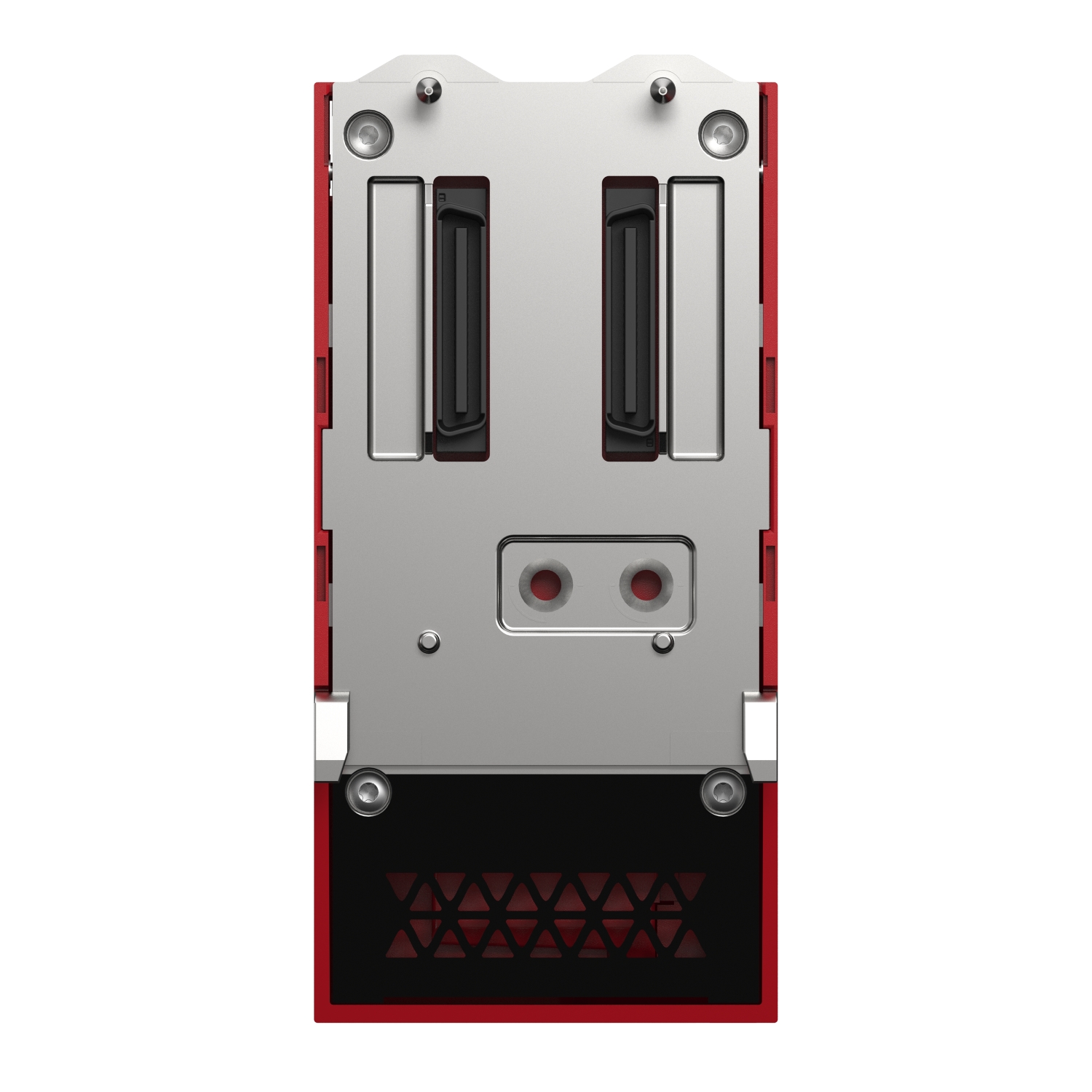

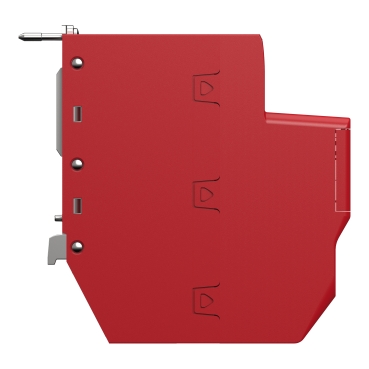

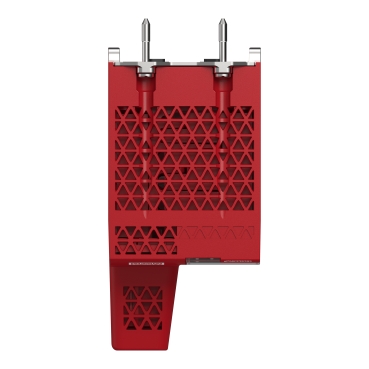

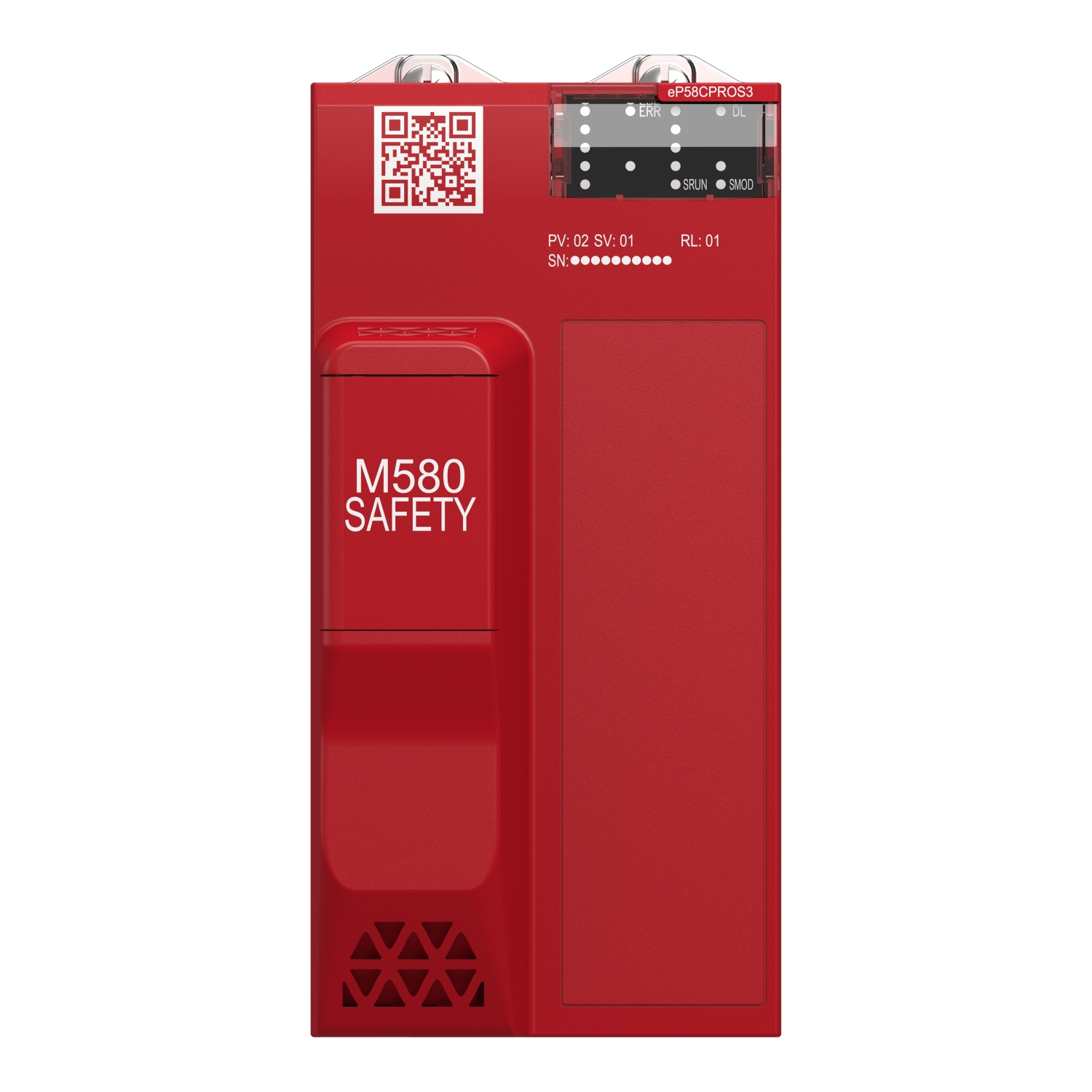

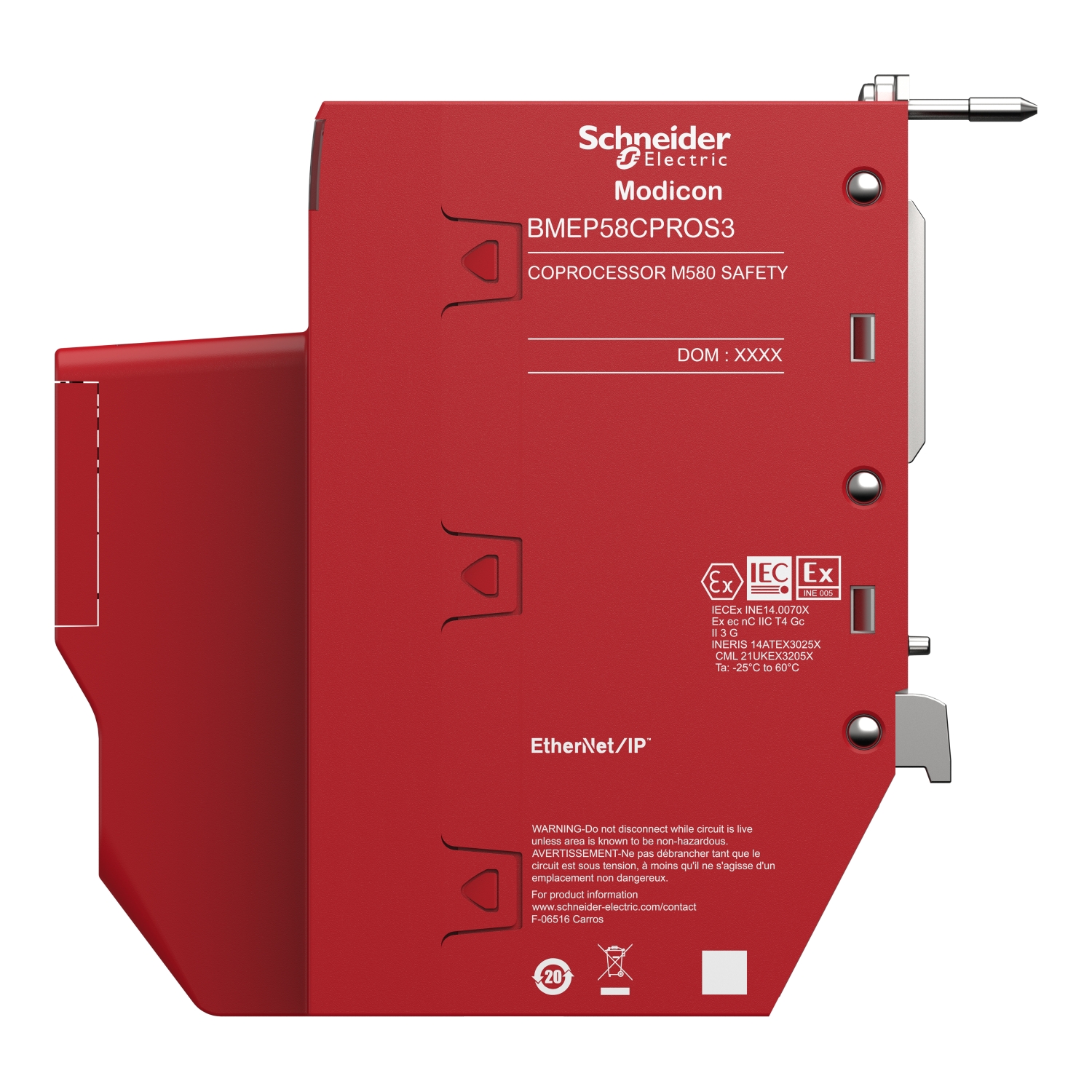

BMEP58CPROS3 | Schneider Electric

Processor module, Modicon M580, CoProcessor Safety
£ 679.64
£ 815.57 inc. VAT
- +
Add to cart

Call for availability

500 available on 30/10/2026
