Item details
Width
125
Height
70
Colour housing
Grey
Nominal rated voltage
24
Material housing
Plastic, metallized
Operation temperature
-5
With potential separation
No
Operating voltage
24
Explosion safety category for gas
None
Explosion safety category for dust
None
Material of contact surface
Other
Max. current carrying capacity per I/O signal
0.5
Max. current carrying capacity per socket
1.8
Max. total current
1.8
Degree of protection (IP)
IP2X
With LED indication
Yes
Pollution degree
2
Connection for NPN-sensors
Yes
Number of channels per connector slot
16
Number of sensor-/actuator-slots
1
Type of branches for sensor-/actuator cables
Other
Thread sleeves sensor/actuator slots
Other
Cable length configurable
Yes
Cable screw gland for cable outer diameter
0.09
Diameter contact female
2.5
Number of poles sensor/actuator slots
16
Fix cable version suitable for cable guide chain
No
Material insulation body
Other
Material contact body
Other copper alloys

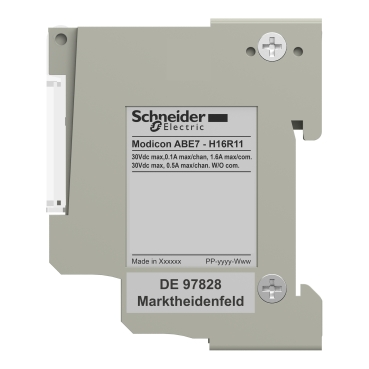

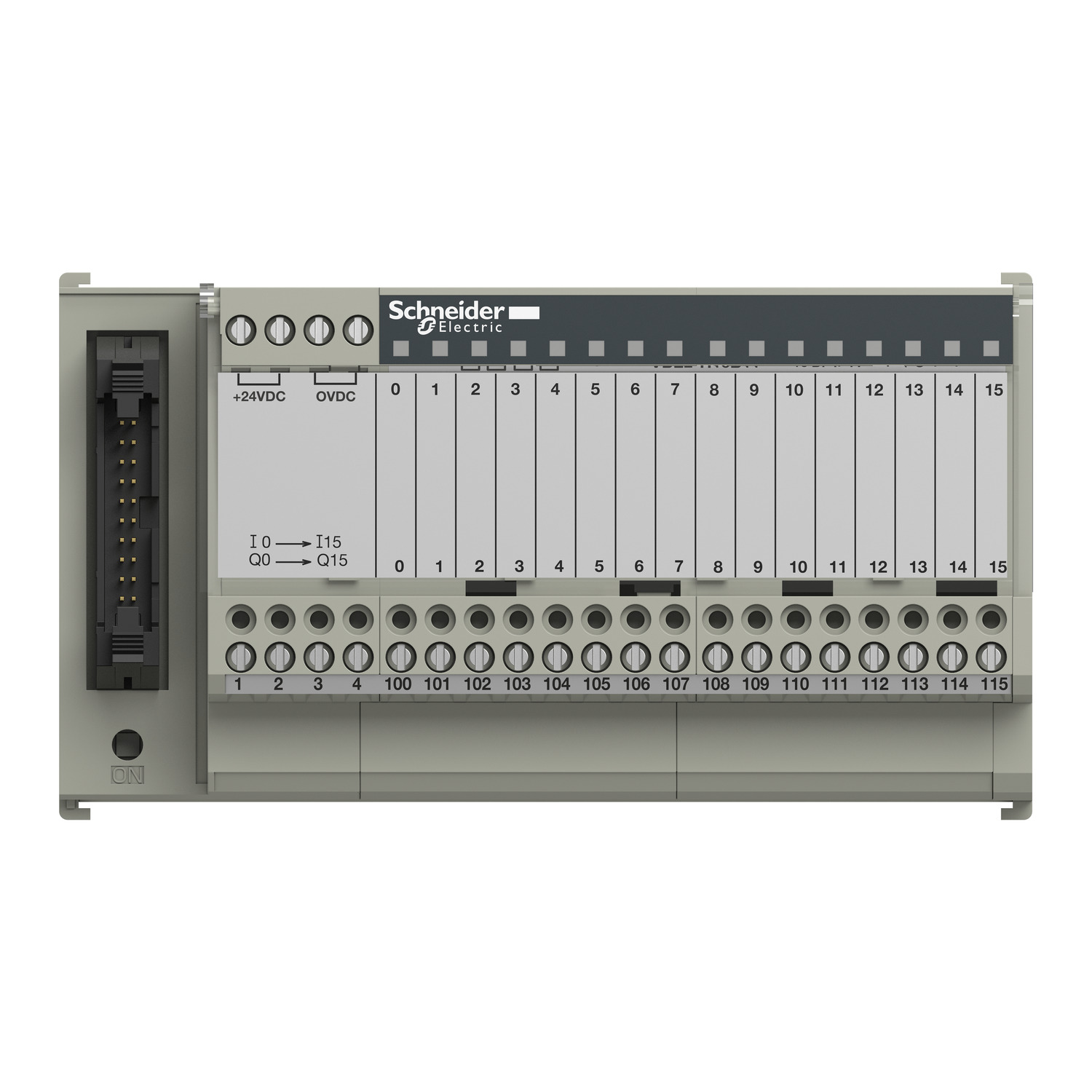

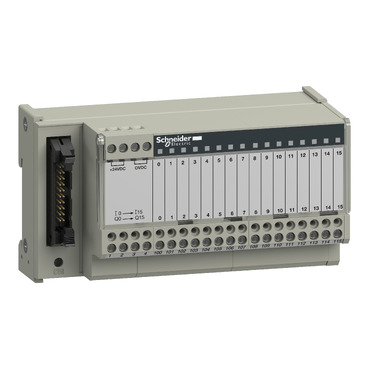

ABE7H16R11 | Schneider Electric

passive connection sub-base ABE7 - 16 inputs or outputs - Led
£ 53.26 -25%
£ 39.95
£ 47.93 inc. VAT
- +
Add to cart

Call for availability

500 available on 11/11/2026
