Item details
Downloads
Item details
Width
54
Height
85
Depth
67.5
Suitable for safety functions
No
Number of digital inputs
20
Number of digital outputs
1
Number of analogue inputs
0
Number of analogue outputs
0
Voltage type of supply voltage
AC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Analogue input, current
No
Analogue input, voltage
No
Analogue input, resistor
No
Analogue input, resistor temperature
No
Analogue input, thermocouple
No
Analogue input signal configurable
No
Type of digital output
Other
Type of electric connection
Screw connection
Rail mounting possible
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
No
System accessory
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Degree of protection (IP)
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of HW-interfaces PROFINET
0
Number of HW-interfaces Wireless
1
Front build in possible
Yes
Rack-assembly possible
No
Wall mounting/direct mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level acc. to EN ISO 13849-1
None
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
110
Supply voltage AC 60 Hz
110
Analog outputs configurable
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
SIL according to IEC 61508
None

A9XMWD20 | Schneider Electric

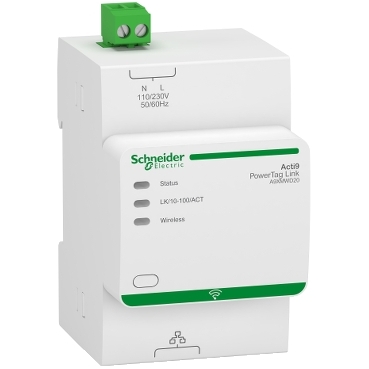

Acti9 PowerTag Link - Wireless to Modbus TCP/IP Concentrator
£ 410.57 -25%
£ 307.93
£ 369.51 inc. VAT
- +
Add to cart

Call for availability

500 available on 11/11/2026
